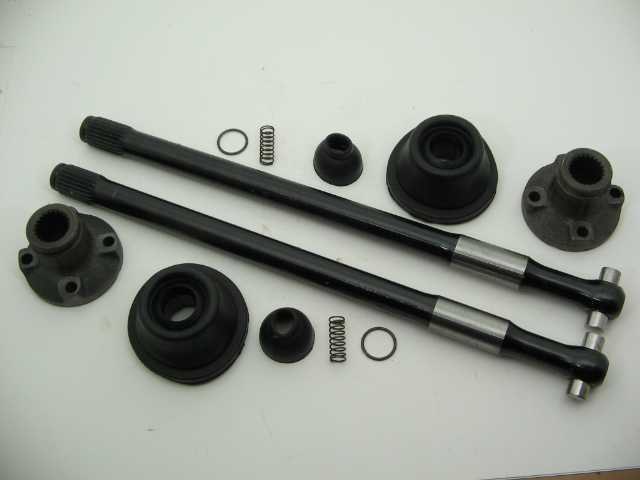

AXLE SET WITH 24 MM SHAFT

NEW - 4 BOLT FLEXIBLE COUPLING 1969-7?,
LATE STYLE 420 MM TOTAL LENGTH WITH 14 MM PIN DIAMETER 500 R AXLE SET WITH 24 MM SEALING SURFACE.
REQUIRED FOR USE IN 126 MOTOR & TRANSMISSION ASSEMBLY INSTALLATION IN A 500 F, L, OR R.
YOU WILL ALSO NEED A GASKET SET 615 (OR 2 O RINGS 970283 & 1 O RING 4125331) TO CHANGE AN AXLE.

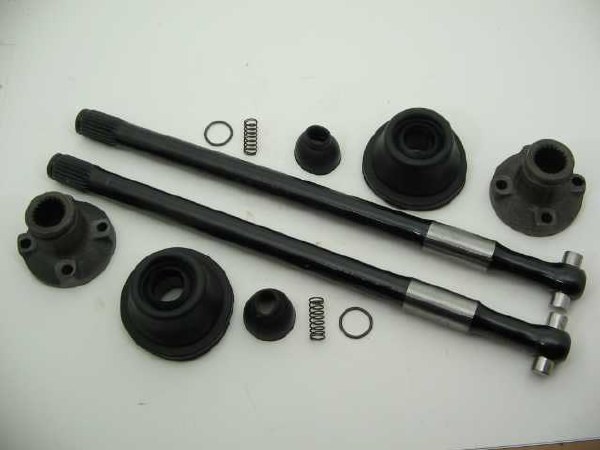

KIT HAS 2 EACH:
BOOT 4354392 (4258924)
AXLE 4295483
FLANGE 4095427 OR 5231
SPRING 337176
AXLE END SNAP RING 13401170 OR 13401176.
IF OUT OF STOCK THIS ITEM CAN BE RESTOCKED FROM ITALY IN 4-8 WEEKS. TO MAKE SURE WE GET ONE FOR YOU PLEASE FILL OUT & RETURN THE SPECIAL ORDER FORM FOUND HERE. OE FIAT SINGLE 500 R AXLE USE 4295483. TO FIT IN A N & D ADD 2 FLANGES 5253. TRANSAXLE GASKET SET USE 615. WITH 20 MM SEALING SURFACE USE 5223P. 500 N & D USE 5252.
REPLACES 41 & 3654.
So you can estimate your shipping costs from www.ups.com or www.usps.com (this form required for all US Post shipments http://www.fiatplus.com/postal-agreement-pg-6.html ), this item weighs less than 9 pounds, and can be shipped in a 19 x 7 x 5 box.-
*
