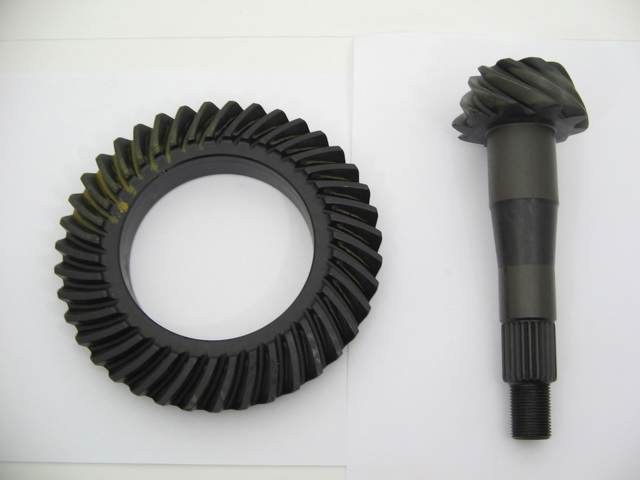

10 X 39 5-SPEED RING & PINION

NEW - 08/1979-#1966226 (~10/1982),
10 X 39 5 SPEED RING & PINION GEAR SET, 3.9 RATIO.
RING MOUNTING BOLT DIAMETER IS 10 MM. RING GEAR IS 28 MM THICK AT THE GEARS AND 24.03 MM ON THE INSIDE FLANGE, PINION SHAFT IS 183 MM LONG. USES STAKE NUT 14044971 (14044271)..
Please note that differential ring & pinion gear set designs have changed over the years depending upon gear manufacturer. The pinion depth shim may need to be internally beveled to clear the shaft to gear bevel, otherwise damage to the pinion shaft, and a broken shim, or other damage could occur. Always put a dab of grease on the surface between the shim and the pinion gear and then rotate the shim with your fingers to confirm that the faces meet all the way around before pressing on the bearing! IF OUT OF STOCK THIS ITEM CAN BE RESTOCKED FROM ITALY IN 4-8 WEEKS. TO MAKE SURE WE GET ONE FOR YOU PLEASE FILL OUT & RETURN THE SPECIAL ORDER FORM FOUND HERE. 10:41 CAN USE 4338670 IF YOU MAKE A 3.15 MM (0.124") THICK BASE SHIM (4338671) FOR THE RING GEAR. BEFORE USE 4334368, AFTER USE 5926997.
REPLACES 241.105.
So you can estimate your shipping costs from www.ups.com or www.usps.com (this form required for all US Post shipments http://www.fiatplus.com/postal-agreement-pg-6.html ), this item weighs less than 10 pounds, and can be shipped in a 11 x 11 x 11 box.-
*
